Working with Images

Adding images to a web page

You add an image to a web page using the single, simple line of HTML code such as shown below.

<img src="assets/img/dog.jpg" alt="My dog Rover, playing in the park">

Or:

<img src="assets/img/cat-picture.png" alt="My cat Judy, sitting on a chair">

As you can see from the examples below, the HTML <img> tag for every image has the same format.

After the <img> tag name are the three letters of src which set the source (location and file name) of the image file. This is known as an attribute or property of the <img> tag.

Note that the <img> tag does not need a closing tag. It is one of the few examples of self-closing tags in HTML.

Images and alternative text

If, as the result of a slow connection or other reason, an image on a web page cannot be displayed, HTML offers an attribute named alt, a short form of ‘alternative text.’

In the above example, all six inserted images each include a short alternative description.

If you omit the alternative text for any image on a web page, your web page is regarded as "invalid".

Below you can see the output produced by the official W3C HTML validity checker on a web page which is missing the alt attribute from an img tag.

Working with the van Gogh web page

In this section, you will work with the sample page-4.html web page, the sample style-4.css stylesheet and four images.

1. In Visual Studio Code, open the following two files:   page-4.html
   style-4.css
2. After the paragraph under the heading “The Arles Years”, type the following code: Or, just copy-and-paste the following:

   <img src="assets/img/bedroom-arles-van-gogh.jpg" alt="Bedroom in Arles, van Gogh">

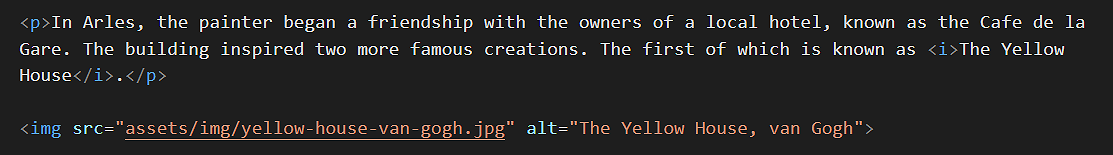

3. Next, add the following three images in the locations shown.

   <img src="assets/img/yellow-house-van-gogh.jpg" alt="The Yellow House, van Gogh">




   <img src="assets/img/cafe-terrace-at-night-van-gogh.jpg" alt="The Cafe Terrace at Night, van Gogh">




    <img src="assets/img/starry-night-van-gogh.jpg" alt="Starry Night, van Gogh">


4. When finished, save your page-4.html file and view it in your web browser.

Adding a drop shadow effect

To give the images on your web page a drop shadow effect, add the following at the end of your style-4.css stylesheet.

This will also add a vertical bottom margin of 42 pixels under each image.

Save your CSS file and view the effect on your page-4.html web page in your browser.

In VS Code, you can now close your page-4.html and style-4.css files.

Working with the Tourism web page

In this section, you will work with the sample page-5.html web page, the sample style-5.css stylesheet and five images.

1. In Visual Studio Code, open the following two files:   page-5.html
   style-5.css
2. Directly under the sub-heading “Guinness Storehouse, Dublin”, type the following code: Or, just copy-and-paste the following:

   <img src="assets/img/guinness-storehouse.jpg" alt="Guinness Storehouse">


3. Next, add the following four images to your HTML file in the locations shown.
4. When finished, save your page-5.html file and view it in your web browser.

Adding a rounded corner effect

To give the images on your web page a rounded corner effect, add the following at the end of your style-5.css stylesheet.

This will also add a vertical bottom margin of 32 pixels under each image.

Save your CSS file and view the effect on your page-5.html web page in your browser.

In VS Code, you can now close your page-5.html and style-5.css files.

Working with the Smoothies web page

In this section, you will work with the sample page-6.html web page, the sample style-6.css stylesheet and four images.

1. In Visual Studio Code, open the following two files:   page-6.html
   style-6.css
2. After the paragraph under the heading “Smooth Smoothies”, type the following line to add an image named “watermelon.png”: Or, just copy-and-paste the following:

   <img src="assets/img/watermelon.png" alt="Watermelon Wonder">


3. Next, add the following three further images to your HTML file at the locations shown.
4. When finished, save your page-6.html file and view it in your web browser.

Removing an image background

You will see that the lemons.png image does not have a transparent background. Follow these steps to make the background of the image transparent.

1. Open a new tab in your web browser and go to this web address:   remove.bg
2. Click the Upload image button, and upload your lemons.png image file.
3. When the operation is finished, click the Download button.
4. Your downloaded file will have a modified name such as: lemons-removebg-preview.png
5. Copy this file to your websites folder, and add it to your web page to replace the original file which had a non-transparent, white background.

Save your web page and view the result in your browser.

In VS Code, you can now close your page-6.html and style-6.css files.

Working with the Software web page

In this section, you will work with the sample page-7.html web page, the sample style-7.css stylesheet and four images.

1. In Visual Studio Code, open the following two files:   page-7.html
   style-7.css

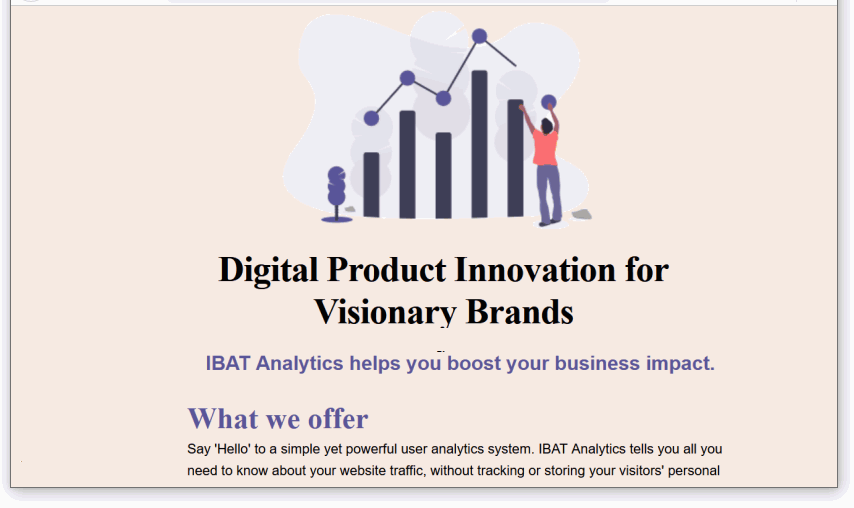

2. At the very top of the web page, just after the opening <body> tag, type the following line to add a new image named “visual-data.png”: Or, just copy-and-paste the following:

   <img src="assets/img/visual-data.png" alt="IBAT Analytics product">


3. Next, add the following three more images to your HTML file at the locations shown.
4. When finished, save your page-7.html file and view it in your web browser.

In VS Code, you can now close your page-7.html and style-7.css files.

Updating your website home page

Now that you have created and styled four new web pages, let’s add hyperlinks to these new pages to the ‘home page’ of your web site.

Updating your home page content

Follow the steps below:

1. In Visual Studio Code, open this HTML file in your websites folder:   index.html   Its content should look as follows:
2. Copy-and-paste the following new lines to your web page, directly under the line that contains the link to the page-4.html web page.

   <p><a href="exercises/page-4.html">Vincent van Gogh</a></p>
   <p><a href="exercises/page-5.html">Irish Tourism</a></p>
   <p><a href="exercises/page-6.html">Smoothies</a></p>
   <p><a href="exercises/page-7.html">Software Analytics</a></p>


3. The <body> of your edited home page should now look similar to that below.

Save your index.html web page and view the result in your browser.

Adding an image to your home page

Before adding images to the pages of your personal website, you need to create a sub-folder to store them.

For Microsoft Windows users, here are the steps:

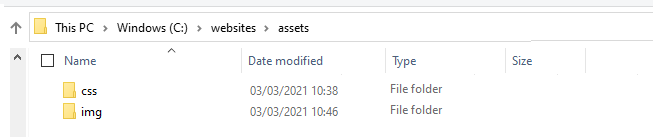

1. Open File Explorer, display your 📁 websites/assets sub-folder.
2. In the blank space at the right side, right-click and choose New | New folder from the context menu.
3. Give your new sub-folder the name img.


   DO NOT type upper-case letters. Type img.

   DO NOT type 'Img' or 'IMG'.

✅  That’s it. The assets sub-folder of your 'main' websites folder now has two sub-folders: one for stylesheets and one for images.

Now, you can add one or more images to the home page of your website.

1. In VS Code, open your home page index.html file.
2. In your web browser, select and download a suitable image from the range of copyright-free, stock photography websites.
3. Copy your selected image from your Downloads folder to your assets/img sub-folder.
4. In VS Code, add the image to your index.html web page.   In the img tag, don’t forget to include the alt attribute with some descriptive text.
5. Save your web page and view it in your web browser.

✅  Another task complete.
